Clean your Bar Cooler Condenser



Hi, I'm Hannah - I'm going to show you how to clean your bar cooler!

clean back bar cooler



Cleaning your appliance will make it last longer, consume less energy and chill faster. Here is a step by step guide to the procedure. It takes about 15 minutes from start to finish.

1. Switch off the cooler

cleanme1


 2. Unplug from the mains socket

cleanme2


 3. Pull the unit out so that you can access the back plate

cleanme3


 4. Unscrew the rear cover plate and remove

cleanme4

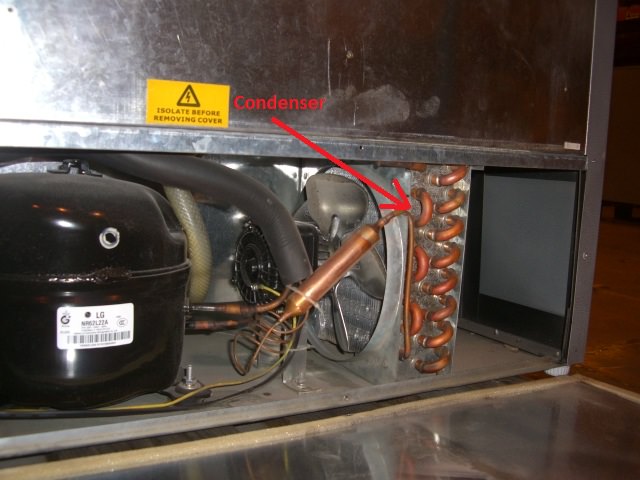

 5. This will expose the condenser, compressor, fan motor and so on

condenser         cleanme5

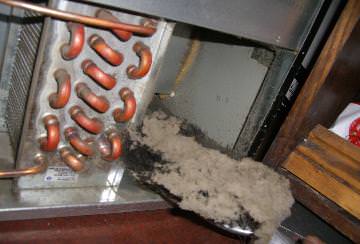

 6. Take a soft brush, or the head of a vacuum cleaner and remove all dust

cleanme9


 7. Brush clean, being sure not to damage or bend this delicate component

cleanme7

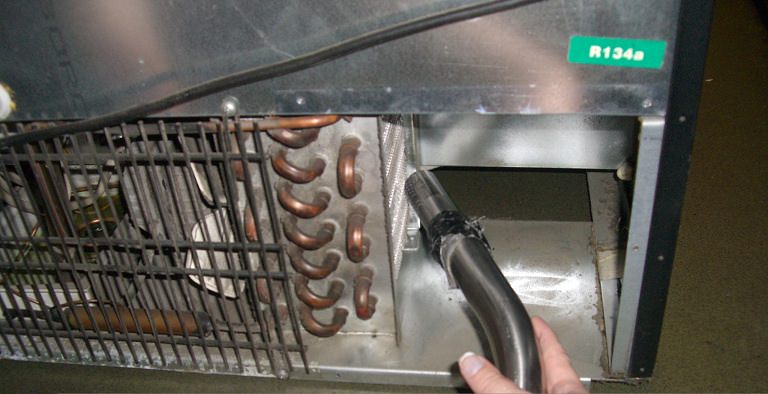

 8. Vacuum up any debris

cleanme6


 9. Clean as much of the area as you can get at being careful not to damage any of the delicate componentry.
 10. Never use water!
11. Put the rear cover plate back and replace the screws.

cleanme11
 12. Put the socket back in

cleanme12
 13. Switch back on.

cleanme13

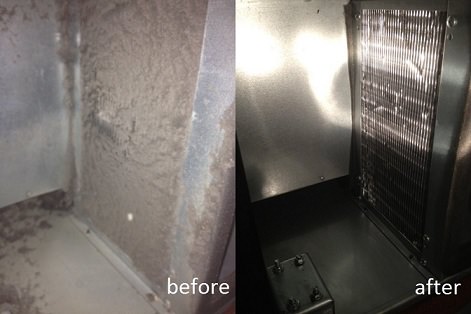

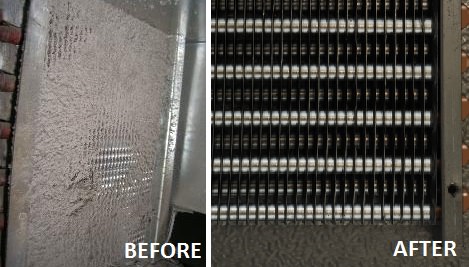

It should look like this after you clean your bar cooler!

 How it looks when clean

Condenser Cleaning





Enjoy the cool drinks and don't forget to do this again in three months time.
